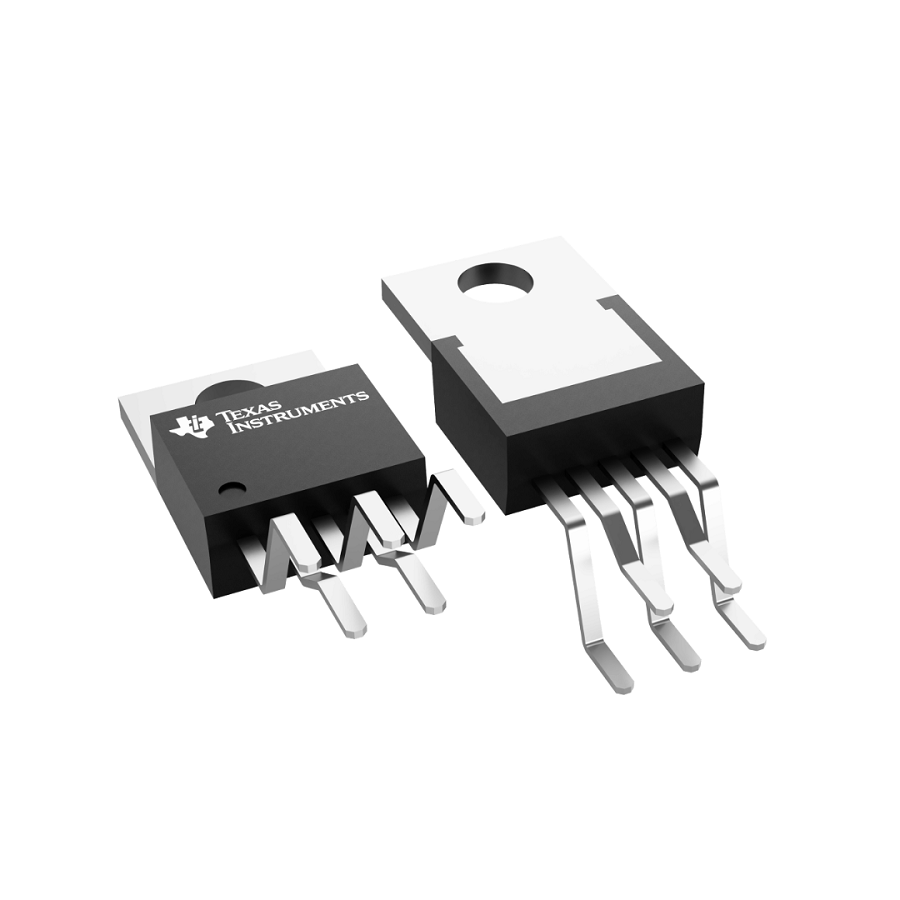

LM675T
Manufacturer:
Texas Instruments
Mfr.Part #:
LM675T
Datasheet:
Description:
Amplifiers - Op Amps, Buffer, Instrumentation TO-220-5 Through Hole Power Amplifier Number of Circuits:1
| Parameter | Value |
|---|---|
| Length | 14.986 mm |
| Width | 10.16 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 5 |
| Height | 4.7 mm |
| Packaging | Tube |
| Thickness | 4.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Number of Elements | 1 |
| Output Current | 3 A |
| Number of Circuits | 1 |
| Bandwidth | 70 kHz |
| Operating Supply Voltage | 18 V |
| Lifecycle Status | Active |
| Max Power Dissipation | 30 W |
| Max Supply Voltage | 60 V |
| Min Supply Voltage | 16 V |
| Power Dissipation | 30 W |
| Number of Channels | 1 |
| Slew Rate | 8 V/µs |
| Common Mode Rejection Ratio (CMRR) | 90 dB |
| Operating Supply Current | 18 mA |
| Input Bias Current | 2 µA |
| Max Supply Current | 50 mA |
| Dual Supply Voltage | 9 V |
| Nominal Supply Current | 18 mA |
| Output Current per Channel | 3 A |
| Gain Bandwidth Product | 5.5 MHz |
| Input Offset Voltage (Vos) | 10 mV (10000 µV) |
| Max Dual Supply Voltage | 30 V |
| Min Dual Supply Voltage | 8 V |
| Voltage Gain | 90 dB |
| Number of Amplifiers | 1 |
| Power Supply Rejection Ratio (PSRR) | 70 dB |
| Amplifier Type | Power Amplifier |
Stock: 1096
Distributors
pcbx
pcbxUnit Price$5.79471
Ext.Price$5.79471
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.79471 | $5.79471 |
| 10 | $4.34304 | $43.43040 |
| 25 | $4.14299 | $103.57475 |
| 50 | $3.79861 | $189.93050 |
| 100 | $3.48285 | $348.28500 |
| 300 | $3.19334 | $958.00200 |
| 500 | $2.92790 | $1463.95000 |
| 1000 | $2.68448 | $2684.48000 |
